Difficulty: novice
Learning Objectives
After reading this article, you’ll be able to:
- Identify the Kiosk that addresses your needs
Choosing the hardware for your Kiosk
The Spacewell Room Display is a device that runs the Spacewell Kiosk App, based on Android.
There’re 3 models to choose from, depending on the budget and needs:

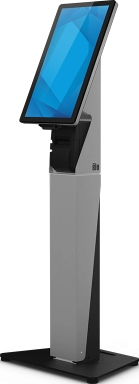

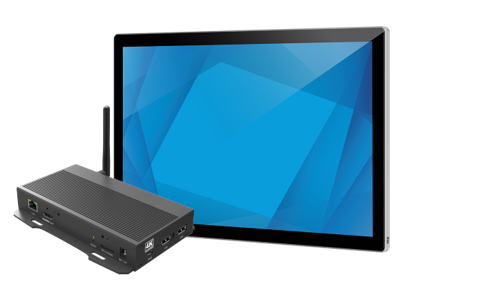

ELO 22” floor kiosk | ELO 32” wall kiosk | ELO 55” wall kiosk | |
|---|---|---|---|
LOOKS | |||
DISPLAY SIZE | 22” | 32” | 55” |
OS | Android 14 | ||
ANDROID PC | As separate backpack | ||
MOUNT | ELO Wallaby pole; can be used in landscape and portrait mode | Vogel's wall mount for landscape mode | |
CPU | ARM Dual-Core A72 + Quad-core A53, 64 bit 1.8GHz | ||
SCREEN RESOLUTION | Full HD (1920 x 1080) | 4K | 4K |
I/O PORTS on QBIC backpack |
| ||
Camera available/supported | NO | ||
Microphone available/supported | NO | ||
LAN/WiFi | YES | ||
WIFI 6 compatibility | NO | ||
4G Option | Available, see https://spacewell.atlassian.net/wiki/pages/resumedraft.action?draftId=700547073&draftShareId=b844db42-f253-4b2a-9814-82f01010732c | ||
You can install the app on any other tablet device, as long as it runs the latest OS versions of iOS, Android or Windows. “Jailbroken” (iOS) or “rooted” (Android) devices are not supported. Other Operating systems like Tizen are not supported. The screen size must be at least 21inch for the app the look good in floor display mode.
You can install the app on any other tablet device, as long as it runs the latest OS versions of iOS, Android or Windows. “Jailbroken” (iOS) or “rooted” (Android) devices are not supported. Other Operating systems like Tizen are not supported. The screen size must be at least 21inch for the app the look good in floor display mode.
Kiosk App in use
Kiosk app on a floor display can be used in Landscape or Portrait mode. The Kiosk app will switch to the relevant Landscape or Portrait mode based on the screen rotation.
Kiosk App Download link
Google Playstore for Android: https://play.google.com/store/apps/details?id=fm.mcs.ckv1t1
Spacewell Appstore: https://appstore.spacewell.com/#CKDC
Next steps
- Check Hardware prerequisites on Kiosk Hardware Installation
Archive
Android ELO backpacks
For Configuration instructions, see Installing the Kiosk app on an ELO device

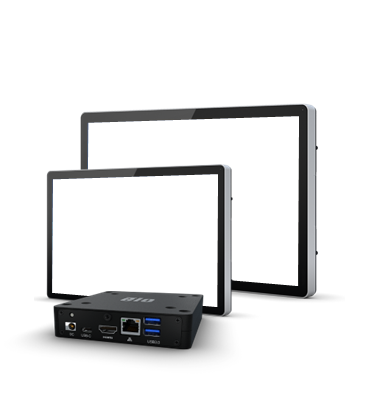

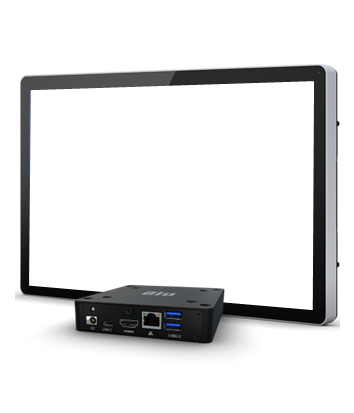

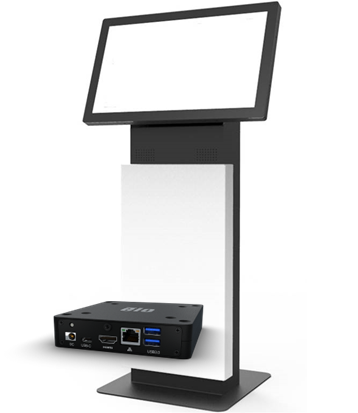

ELO 32” floor kiosk | ELO wall kiosk (32”-43”) | ELO 55” wall kiosk | |
|---|---|---|---|
LOOKS | |||
SIZE | 32” | 32” - 43” | 55” |
OS | Android 10 | Android 10 | Android 10 |
ANDROID PC | As separate backpack | As separate backpack | As separate backpack |
WALL MOUNT | Not applicable | Vogel's PFW 4200 Wallmount | Vogel's PFW 4200 Wallmount |
CPU & APP PERFORMANCE | OK | OK | |
SCREEN RESOLUTION | Full HD | Full HD | 4K |
BACKPACK PORTS | 4x USB 3.0, Ethernet, Bluetooth, Wi-Fi, HDMI, USB-C output, micro-SD, GPIO, and Wi-Fi antennas. | 4x USB 3.0, Ethernet, Bluetooth, Wi-Fi, HDMI, USB-C output, micro-SD, GPIO, and Wi-Fi antennas. | 4x USB 3.0, Ethernet, Bluetooth, Wi-Fi, HDMI, USB-C output, micro-SD, GPIO, and Wi-Fi antennas. |
Camera available/supported | NO | NO | NO |
Microphone available/supported | NO | NO | NO |
WIFI 6 compatibility | NO | NO | NO |
