Modification screen

In the modification screen, you can create, read, or import project folders and objects

Project folder

If you are in the explorer at the top-level Projects folder, you will see the following menu in the modification screen.





Create project folder

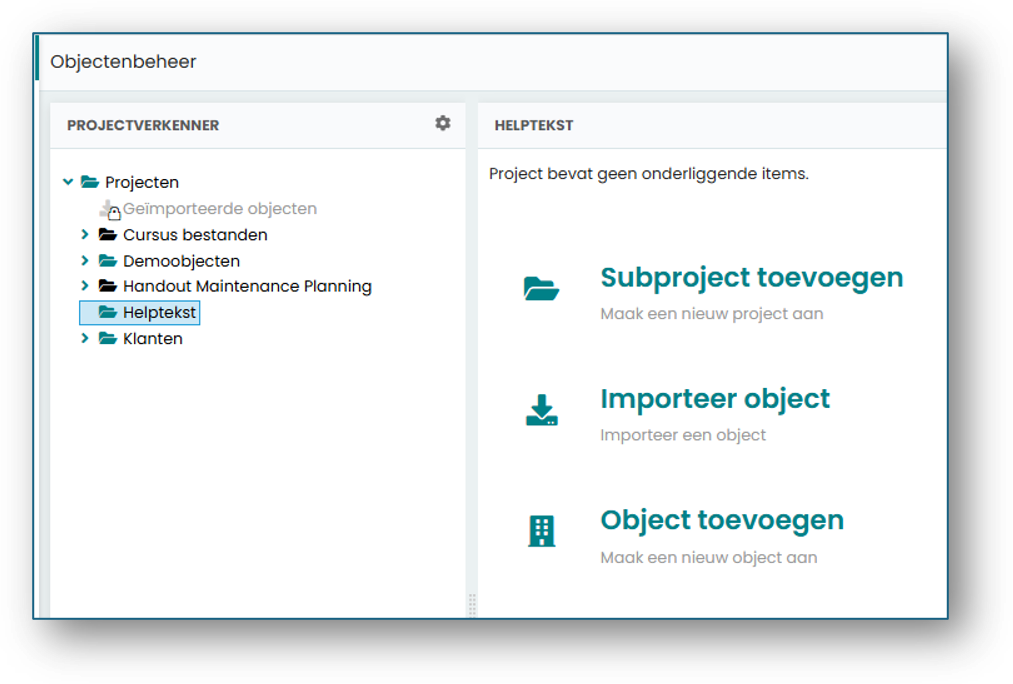

After you have created a new project folder and given it a name, you will see 3 options in the modification screen:

  • Add subproject
  • Import object
  • Add object


Import object

With this functionality, you can read .op2 files. These are export files generated from Maintenance Planning.

Add object

With this functionality, you can create a new object within Maintenance Planning

If you already have an object in a project folder, the following menu will appear on your screen.





Creating a new object.

After you have created it and want to enter data, go to Object details page




Transfer current selection to Object selection

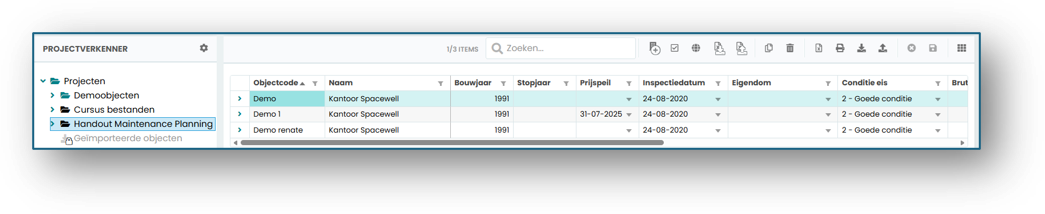

In the modification screen, you will see the objects in the selected project folder. By selecting all or one object (MP-Advanced), multiple objects (MP-Ultimate) on your screen and then clicking this function, these objects will be displayed in the Object selection.




Show objects on the map.

If the address details have been entered for the objects, these objects will be displayed on a map.


Import objects from an Excel file.



image-20260722-083441.png Export objects to an Excel file
image-20260722-083453.png Copy an object.

Delete an object.

If you accidentally deleted an object, you can find it in the Recycle bin under System administration. From there, you can restore the object to your project folder.

image-20260722-083522.png Import an .op2 file
image-20260722-083532.png Export an object to an .op2 file

Icons not listed can be found in the Overview of the icons (general functions)
