Difficulty: expert
Content
Learning Objectives
After reading this article, you’ll be able to:
- configure Logitech People Count sensors in Workplace
- send Logitech People Count data to Workplace
Data Stream Configuration
Check Logitech Headcount Data Integration Project (SW internal)
Info
The data stream setup needs to be done once, then it will be possible to add new rooms/areas in scope.
Deploy sensors in Workplace Platform
Add New Device in Workplace back-end Studio
- Go to your environment (https://studio.cobundu.com) and log in
- Select the location, where you can manually add a sensor via "Add New Device"

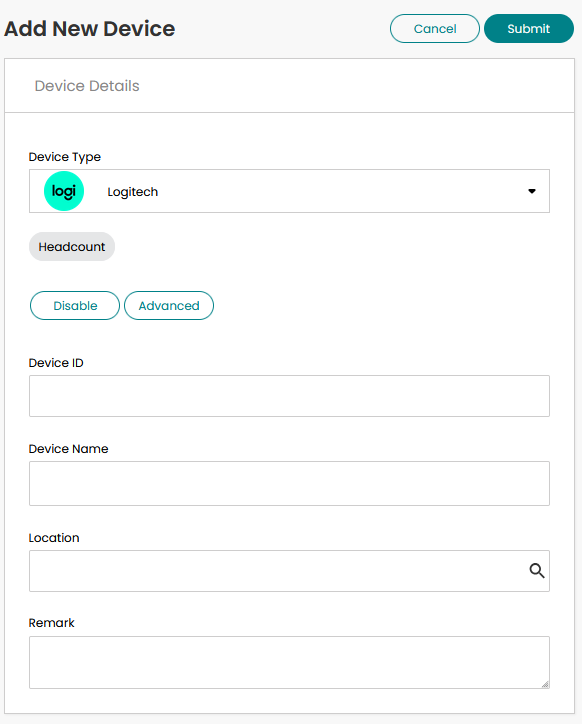

Manually add device through location > devices > new: location is filled in.
Select the relevant Logitech Device Type. This will automatically link the “Headcount” device channel.
When you click in the Device ID field, a pop-up showing the Logitech location hierarchy for this API for the tenant will open. Select the relevant Logitech device.
Enter a meaningful Device Name (eg customer_floor number_area).
Select a Location from the Spacewell location tree if this is already known (automatically filled in if location was selected before adding new device).
Linked Locations is not relevant for this kind of sensor.

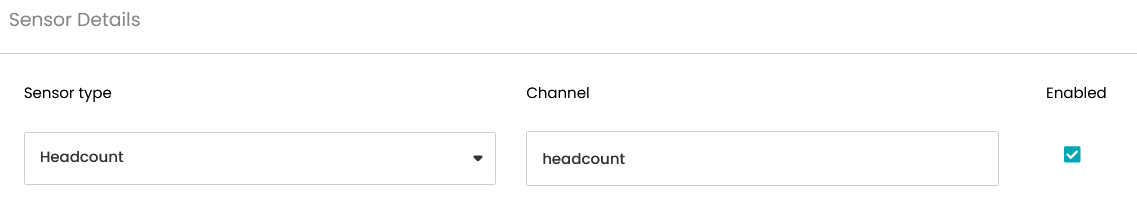

Selecting the correct Device Type "Vergesense" should automatically set the Type and the Channel to “Headcount” (see Advanced).
For more information on how to add multiple new devices to Studio, check out Configure devices (add, remove, import, and export).
Quality Assurance
Next step is the Quality Assurance to make sure that the whole installation and configuration of your sensor was a success. See Quality Assurance Occupancy and Utilization Sensor
Info
Spacewell cannot be held accountable for data quality or (lacking) accuracy related to data reported on a location, as it’s inherent to the way the sensors are installed and subsequently mapped.
