Settings:
The most commonly used Building Component classification code is the NLSfB coding (BNA2005 version). This is included as standard in the application. In addition to NLSfB, the ONDB code and the Stabu code (at action level) can also be selected. The user can also create classification codes in system administration - primary codes. The selected classification is displayed in the software. You can change this in the settings as indicated below in the red-outlined icon:

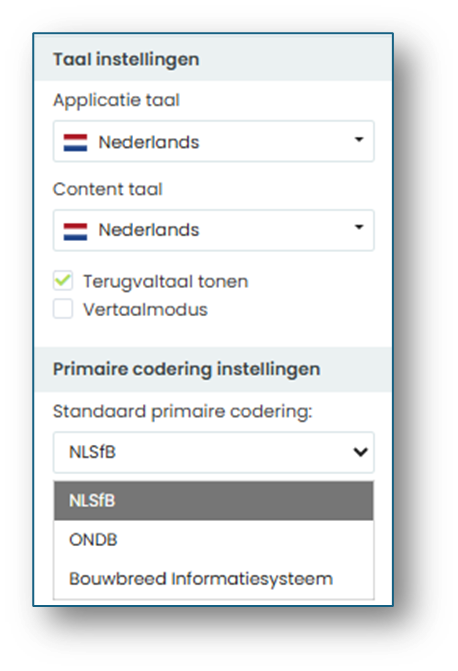

A settings menu will then appear where you can set the primary code.
Using Classification:
Here you will find an overview of the classification of the building components.
Here you can select “All”; the Building Components overview will then show all building components that have been added to the object.

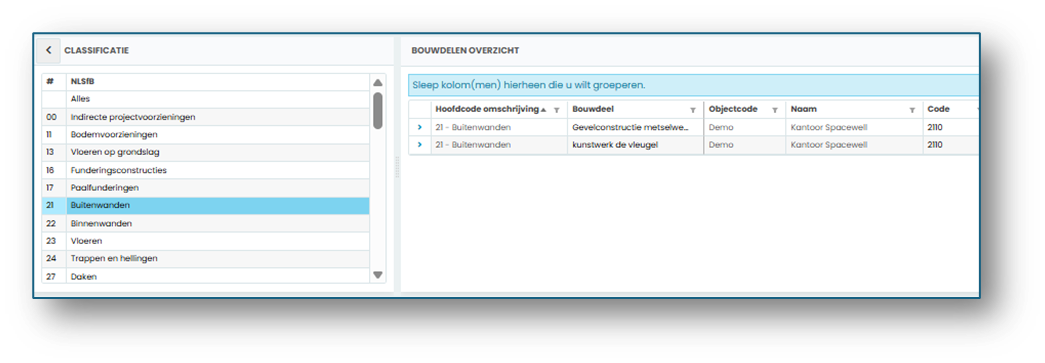

Select a specific classification main code to display only the building components belonging to the selected code. See the example below

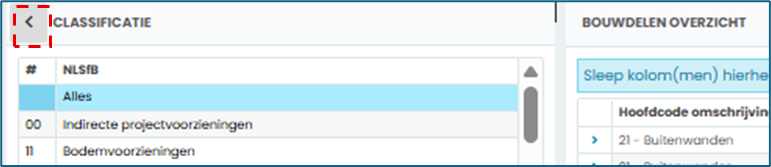

If you do not want the classification overview to be visible, click the arrow symbol for classification and the overview will disappear
Click the arrow symbol for the building components overview to display the overview again.
