Difficulty: novice
Learning Objectives
After reading this article, you’ll be able to:
- Prepare your environment to start using Milesight
- Read the information on the Milesight CO2 E-Ink display
- Troubleshoot in case of issues
Milesight comfort sensors gather data for Humidity + CO2 + Temperature.
Prerequisite: Gateway
Milesight sensors connect over the LoRa network. Make sure you install your LoRa hub before installing the sensors (check out LoRa Gateways / Hubs installation guides for more information).
Use

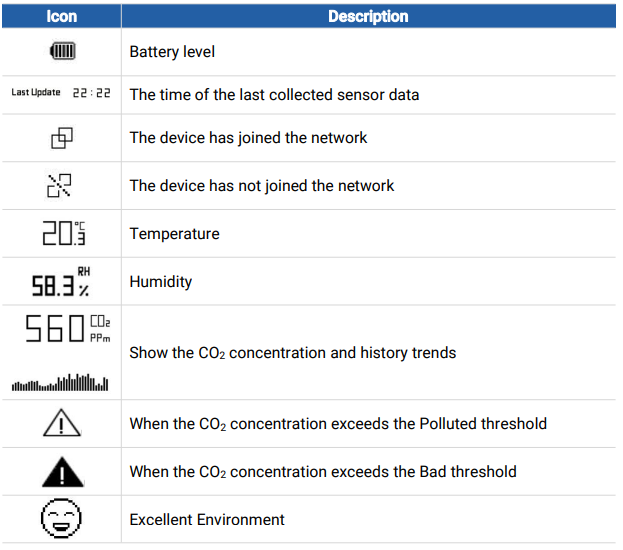

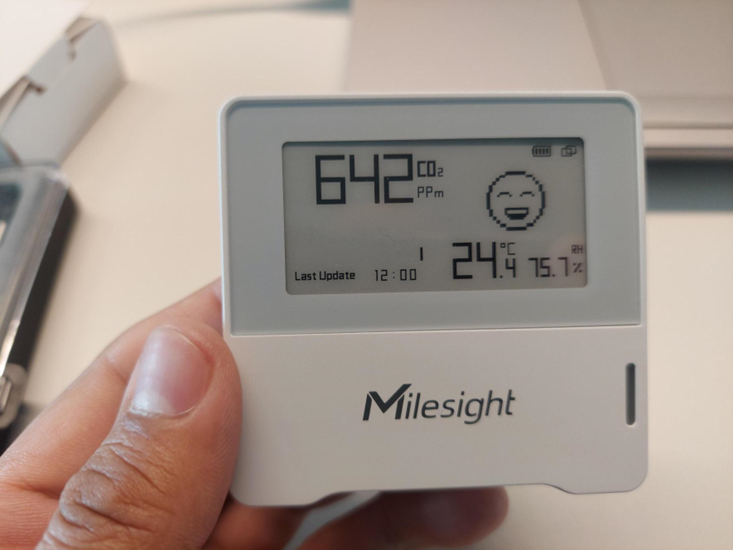

E-ink display
- Milesight CO2 sensor will update data on the screen every 2 minutes
- Milesight CO2 sensor will do a full-screen refresh after 30 times update in order to remove ghosting.
- When Milesight CO2 sensor detects the temperature beyond the range from 0°C to 40°C, the screen will
close automatically.

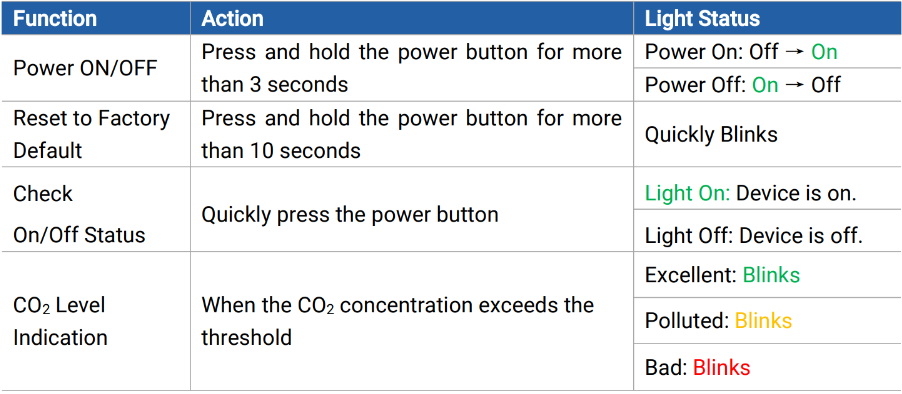

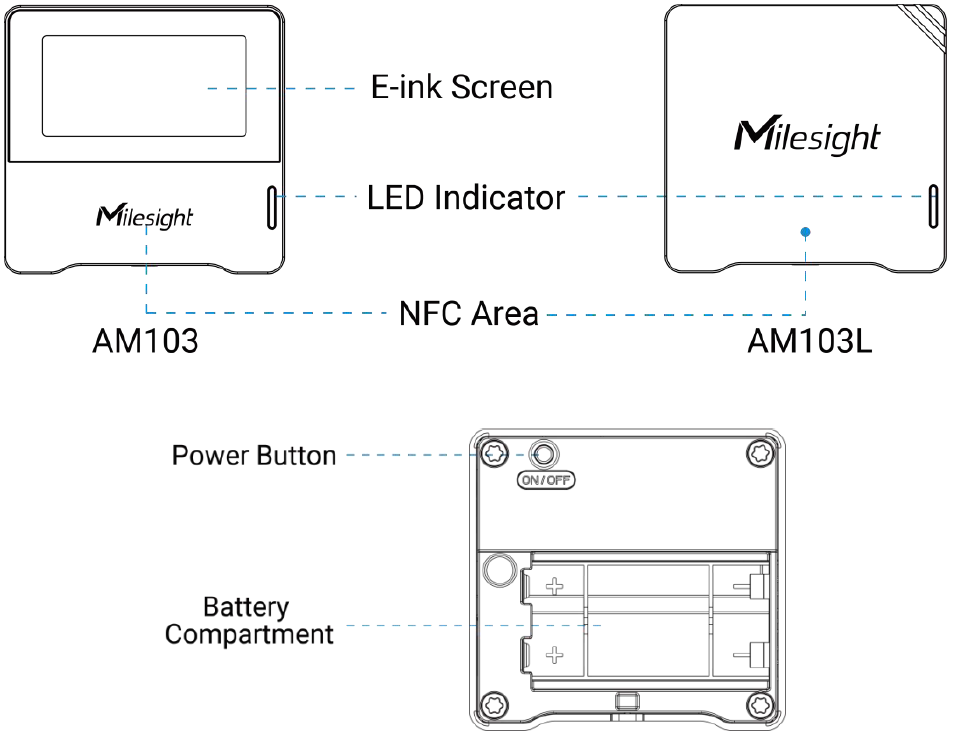

Button & Traffic Lights
Troubleshooting
Press the power button for longer than 10 seconds for the device to reset to factory settings.
