Difficulty: novice
Learning Objectives
After reading this article, you’ll be able to:
- Interpret the Pulse Count Live View

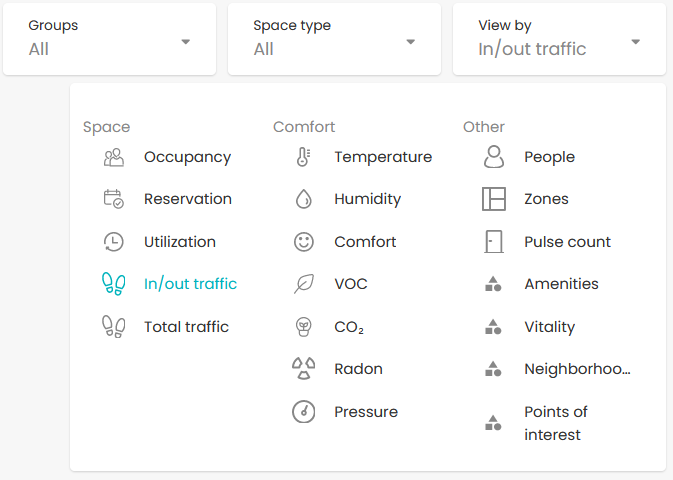

What is “View by” on a live data floor plan?
Toggle between different Space or Comfort data views, that are relevant to your floor. Specific views are only available for a floor if data is available.
Pulse Count
To obtain pulse count data, a sensor like Sensative Strip installation needs to be configured, or push pulse count data to Workplace using our Generic Endpoint, see External Data Sources.
- If pulse count data is coming in, you’ll see the total pulses detected for that location since midnight
- If pulse count data is coming in and thresholds & reset functionality have been configured in Live floorplan settings, you’ll see
a formula depicting “current count” on “total count since midnight”
- the location is colored based on the currently reached threshold
Info
All pulse count values are reset at midnight local time.

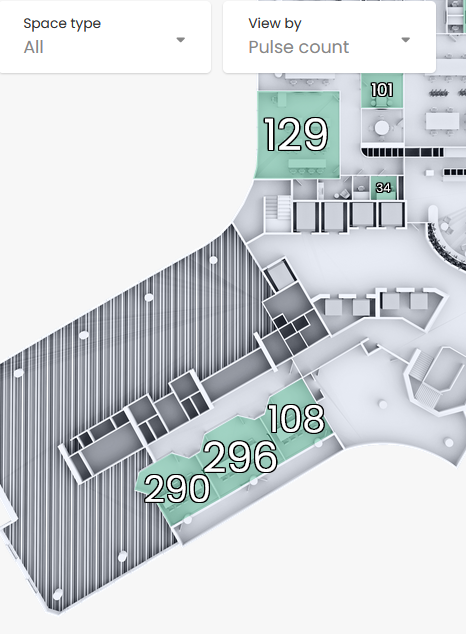

Pulse data view without thresholds & reset functionality configured:

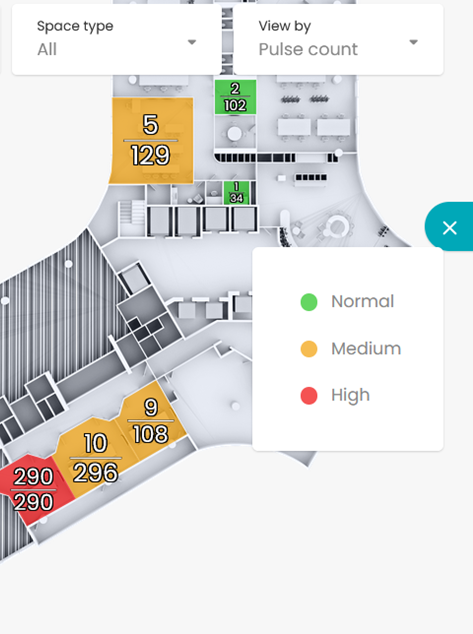

Pulse data view with thresholds & reset functionality configured:

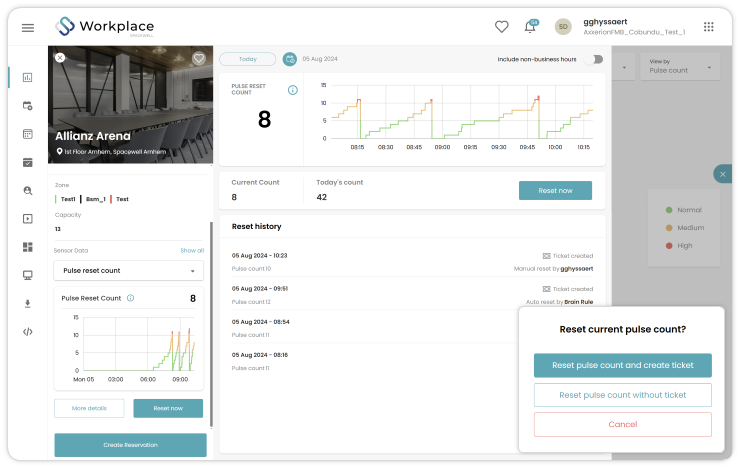

Reset feature
If thresholds & reset functionality are configured and you have the relevant pulsecount.edit permission, in GO webportal, you can also manually reset the values. To do this,
- Select the location
- In the location pane on the left,
select “More Details” to see more details about past resets
- select “Reset Now” for a quick reset
choose to only reset or to reset and create a ticket
Info
To enable the ticket feature:
- Enable required Automation (see Automation repository)
- Select relevant Service Type in Asset > External App
